Bevel gear grinding

Bevel gears are needed in applications where efficient power transmission between non-parallel shafts is required. Bevel gear grinding requires high precision and expertise as the tooth flanks must match exactly to ensure smooth and quiet operation of the bevel gear.

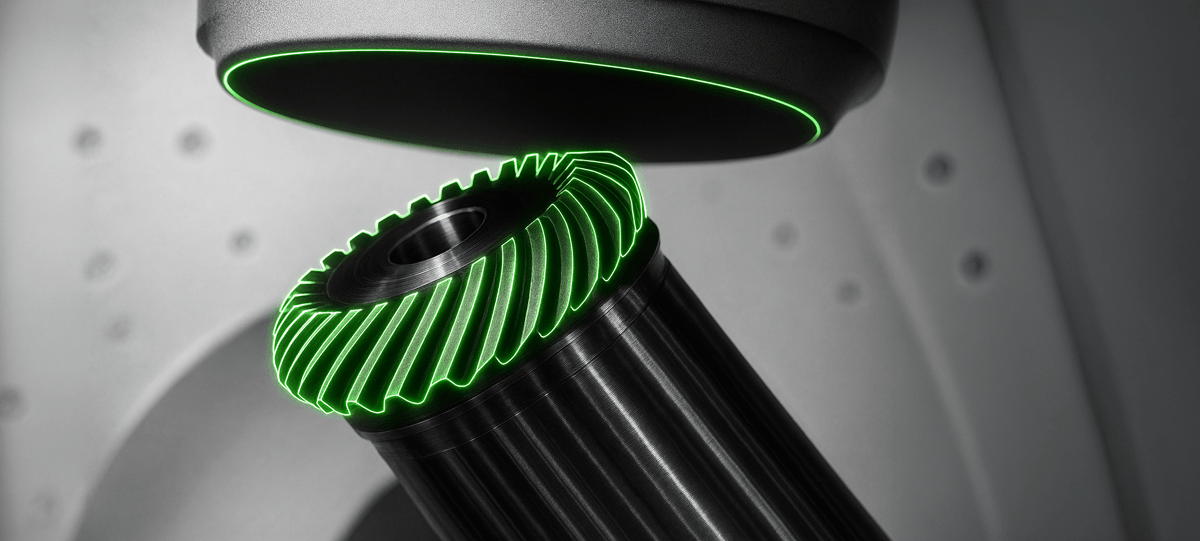

The manufacturing process begins with the precise measurement and programming of the machine to create the desired tooth profile and geometry of the bevel gear. The grinding wheel is shaped according to the desired pitch and profile of the bevel gear. During grinding, the grinding wheel moves in a specific path around the workpiece, precisely machining the teeth of the bevel gear layer by layer. Material is removed to achieve the desired shape, tolerance and surface finish.

Ground spiral bevel gears

• Design according to KIMoS software
